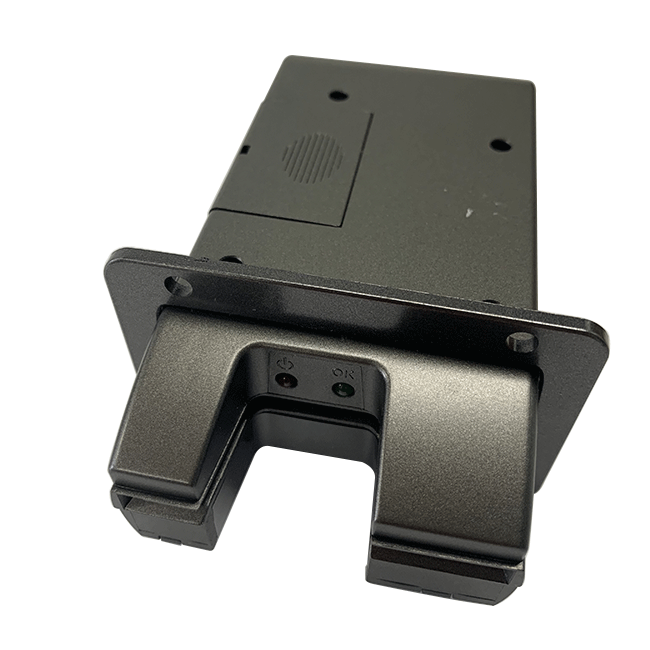

3 In 1 Hybrid DIP Card Reader Full Insertion Waterproof With Lock Card Funtion

Introduction

This products adopts industrial design, good resistance to abrasion and corrosion, fit for high or low temperature and dusty environments. Bayonet smooth, make sure it has very good adaptability for all kinds of deformation card. Electric lock will lock card after inserted completely, ensure the card was ejected via command after the reading writing operation completion. Avoid wrong operation .There are two size front mounting rack for your different choice. Also support multiple card read write.

Magnetic card :support ISO7810,ISO7811-1,ISO7811-6,ISO7812,ISO7813 and ISO15457 standard card read.

IC card :Support ISO7816 normal memory card,Logic encryption card,smart card(CPU card)

RF card:Support ISO1443 TYPEA TYPEB contactless card read write.

Features

1. IC/RF card read/write ,magnetic card reader
2. Auto lock structure

3. Dusty proof cover design, obviate eyewinkers and broken card
4. Manual /auto card ejection
5. Long life with landing contact
6. Diversified bezels ,bracket
7. Provide custom-made service

Specification

Application

• Bank self-service terminal

• Medical treatment terminal

• Parking lot system

• Automatic vending system

• Gas station self-service terminal

• Security terminals

• ID terminals

Product maintenance:

The mag head maintenance:Heads should be regularly maintained. Repeatedly swap cards which dipped in alcohol to keep it clean.

IC probe head maintenance:IC probe head dirty ,same way as point one to clean it .

1) First, you must cut off power supply to avoid machine damage.

2) Keep the machine clean without oil, oily glue can severely affect the performance of the machine.

3) Due to the nature of manual card read, especially set up magnetic card data actively upload/ magnetic card data passively upload.

4) When use it , do not touch the mag head and cable, or will cause card read error problem.

5) Customers can set the magnetic card read card mode with magnetic stripe card setting command.

6) IC Card insertion direction: IC chip Facing up and keep it front side .

7) Magnetic card insertion direction: Magnetic stripe facing down right into the reader.
