Brand Name : | rCloud |
Model Number : | RCS-TM121 |
Certification : | CE.FC,Rohs |
Price : | Negotiation |
Payment Terms : | T/T, Western Union,Paypal, L/C |
Supply Ability : | 1000pcs per month |
Delivery Time : | 5-8 work days |

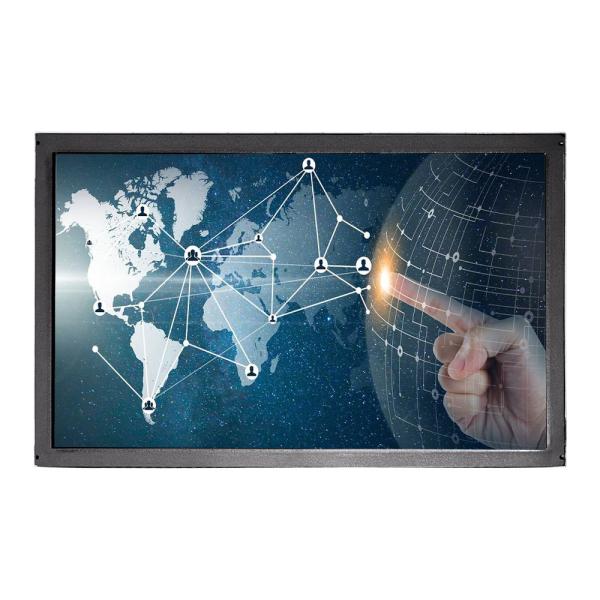

Industrial Degree Tft Lcd Panel Wide View High Brightness Touch
Monitor
Overveiw
This new series comes with capacitive 10-finger multitouch, glass
front reaching MosH 7, the glass surface is anti glare treated
(chemical etched), a wide variety of connectors including USB-B for
touch, HDMI, DVI-D, VGA and audio inputs, all lockable including
the DC-IN. Each capacitive Touch Monitor has an A+ industrial LCD
panel backed by Wintouch’s 100% no dead pixel guarantee. Each
monitor comes with its own desktop stand, and screw patterns on the
back for VESA 75 or 100 mounts.
Specification
Touch Screen | |
Size | 12.1 inch ( 4:3 Screen Ratio ) |
Type | SAW / Infrared ( 1/2 /4/6/10 touch points ) |
Resolution | 4096*4096 |
Light Transmission | 92% |
Touch Life Cycle | 50 millions |
Touch Response time | 5ms |
Touch System Interface | USB / RS232 interface |
LCD / LED Panel | |
LCD Brand | A-UO G121SN01 V3 (Optinal) |
Resolution | 1024(RGB)×768 [XGA] (Optinal) |
Active Area | 246 × 184.5 mm (H×V) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Brightness | 300 (Typ.) (Optinal) |
Colors | 262K/16.2M , 72% (CIE1931) |
Contrast | 1500 : 1 (Typ.) (Optinal) |
Others | |
Power | Output : 12V/DC/4A ; Input : 100-240 VAC, 50-60 Hz |
MTBF | 30000 hr at 25°C |
Temp. | Operating : -30~85°C ; Storage : -30~85°C |
RH: | Operating : 20%~80% ; Storage : 10%~90% |
Advantage of IR touch monitor
· Industrial Desgin With Excellent Durablity
· IR touch Technology Multi Touch 2-10 Touch Points
· 3MM Enhanced Glass With Vandal Proof Resistance
· High Light Transmission Clear Glass
· Easy to Use:Plug and Works on Windows/Linux/(Android)
· Perfect Solutions For Use In Public
· VESA Mounting and Rear Mounting
· OEM/ODM& Customized Option: Brightness/Computer Integrated
Inside/Etc
· Factory Competitive Price & Fast Delivery
FAQ
Q: Can you provide the FBA shipping service?
A: Yes, we have the good experience in providing the professional
FBA service.
Q: What’s your tem of the delivery?
A: Our ordinary delivery term is FOB Xiamen. We also accept EXW,
CFR, CIF, DDP, DDU etc. We’ll offer you the shipping charges and
you can choose the one which is the most convenient and effective
for you.
Q: Which shipping way can you provide?
A: We can provide shipping by sea, by air and by express.
Q: What’s your after-sale service?
A: Our quality warranty period is one year. Any quality problem
will be solved to customer satisfactions.
