    10 inch industrial open frame PCAP LCD portable Touch screen Monitor

    Ask Lasest Price
    Brand Name : rCloud
    Model Number : RCS-TM101
    Certification : CE.FC,Rohs
    Price : Negotiation
    Payment Terms : T/T, Western Union,Paypal, L/C
    Supply Ability : 1000pcs per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    10 inch industrial open frame PCAP LCD portable Touch screen Monitor

    10 . 1 inch industrial open frame PCAP LCD portable Touch screen Monitor


    Introduction :


    10.1 Inch Waterproof PCAP Capacitive LCD Touch Screen Monitor is used with projected capacitive touch technoloy for Button Deck display .

    We provide different dimensions according to your different requirements.In order to provid our customers with high-quality and satisfactory products , we improve the lastest technology and equipment constantly.


    Features:


    10.1 Inch PCAP Capacitive LCD Touch Screen Monitor

    Projected capacitive touch technology
    10points touch multi-touch
    High brightness optional
    Multi-color support and the wide viewing angle
    VESA and Side mount
    Customized Video Input


    Details:


    Product name

    10.1 ''PCAP touch monitor

    Model numer

    RCS-TM101

    Anti-glare LCD Panel


    IP rated front panel

    IP65

    Screen diagonal (Inch/cm):

    10.1/25.65

    Display active screen size:

    21.70x13.60

    Aspect ratio:

    16:10

    Physical resolution:

    1280x800

    1280x800

    Colours displayed:

    16.7M

    Brightness (cd/m2):

    350

    Contrast:

    800:1

    Typical reaction time Tr/ Tf :

    10/15.5 (ms)

    Visual Angle horizontal/vertical :

    170/170(°)

    Backlight / Backlight Lifetime (hours):

    LED/40000


    External Connectors

    Video

    1x VGA

    1x DVI-D

    1x HDMI 1.1 (incl. HDCP)

    Audio

    1x PC-Audio

    Touch Connector

    1x USB

    Connectors

    1x 12V DC-IN


    Touch Panel

    Touch Technology

    Projected Capacitive 10-point Multitouch

    Touch Connector

    USB

    Touch Panel Drivers

    Windows; Linux; Mac; Android

    Touch Life (Contacts)

    Unlimited

    Surface Hardness

    7H


    Operation / Mechanical

    Operating Temperature

    -10 ~ +65 (°C)

    Humidity Range (RH)

    10%-90%

    Net weight (kg)

    0.95

    Gross weight (kg)

    2 (incl. cartonage)

    Housing material

    Aluminium

    Housing (cm) LxWxH

    26.5x18.5x3.9

    Mounting

    VESA 100/ VESA 75

    Power

    Power Indicator

    Green LED

    Power Supply

    100-240V ACDC active switch- ing; 12V DC-Out

    Working Power (V)

    12

    Power Consumption (W)

    10

    Stand-By Consumption (W)

    <1

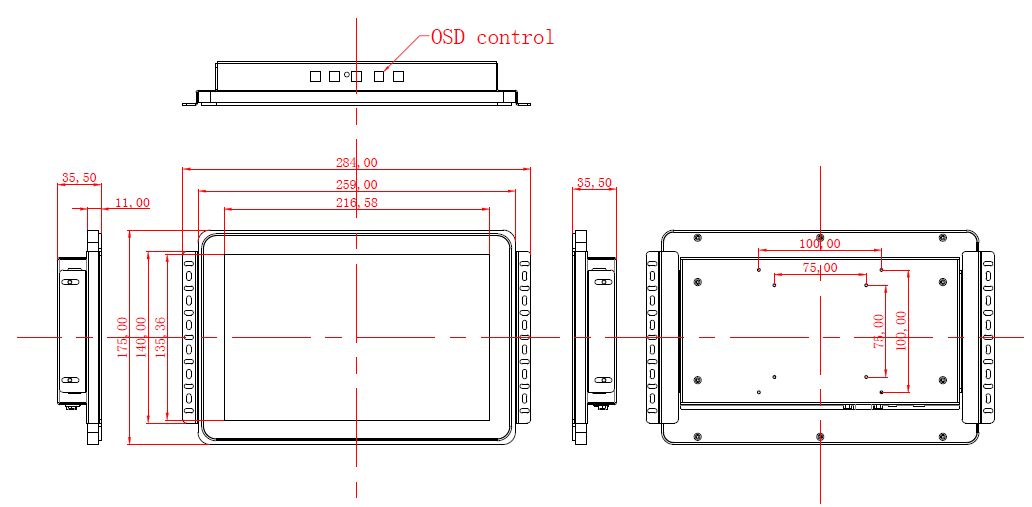

    Product images:


    FAQ:


    1). What is the MOQ?

    Our MOQ is 100 piece.


    2). What is the delivery time?

    Sample: 1 Day if in stock.

    5~8 working days for custom design.


    3). What is the warranty for the products?

    All our products have 12-Months warranty from the shipping date.


    4). What kinds of payment methods does your company accept?

    Most of methods accept here, such as T/T, L/C, Western Union, Paypal.


    5).Do you accept customization?

    Yes, we can. We will continue to customize the design according to your product requirements.


    6). How does your factory control the quality?

    Quality is our life. Our QC department carry out very strict quality inspection from raw material to finished product.
