overveiw

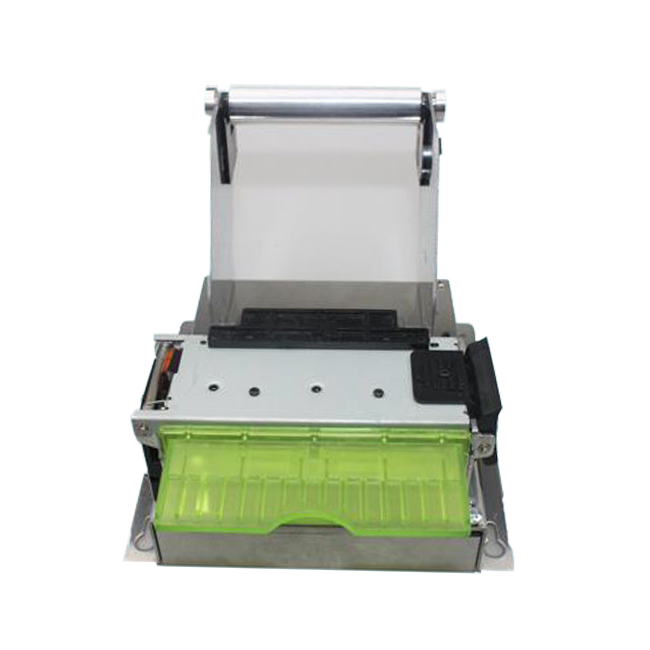

RCT-4610 is 3 inch kiosk thermal printer which is consist of
thermal printer head ,cutter and control board.
Feature
1.large motor design and unique buffer
Stepper motor design, cutting paper thickness up to 0.2mm, support
150mm paper roll diameter, reduce supplies replacement times, and
buffer device can effectively prevent printing compression.
2.Narrow-flat design of paper-taking channel
Paper channel narrow flat design can print 0.2mm thickness of
consumables.
3.Fast Print speed
Depending on the different driving energy and thermal sensitivity
of the use of the heat-sensitive paper can be set according to user
requirements of different printing speed, up to 250mm/seconds of
printing speed
4.Good heat dissipation of the motor
Fixed motor is metal, can quickly heat dissipation
specifications
| Printing | Print method | Thermal-line dot method |
| Print speed | Max:250mm/s |
| Resolution | 203dpi(8dots/mm) |
| Effective printing area | 80mm |
| Character | Character set | ASCII,GBK,BIG5 and so on |
| Print font | ASCII:(9*17,9*24,16*18,12*24) Chinese:(24*24) |
| The characters number per line | Font A(12*24):32 Font B(9*17):42 GBK:16 |
