LED Bi-directional USB Black Desktop Manual Swipe Magnetic Card
Reader
Overview:
RCR-1142 is ideal for access control, time keeping, banking, ID
recognition & credit verification and related applications. In
fact, wherever a magnetic stripe ID or transaction card is used,
one can find a related use for the versatile, user-friendly card
reader/writer. And this machine is exported to World wilde.
The Universal Magnetic Swipe Reader can read Track 1 & 2 or Tracks
1,2, & 3 magnetic information with a single swipe in either
direction. This reader accepts both high and low coercivity
magnetic cards, and can read all ISO 7811, AAMVA and California
Driver's license.
Features:
* USB/RS232C/PS/2 interface; Bi-directional card reader
* Reads credit cards, bank cards, driver's licenses and ID cards
* All tracks are available (Tracks 1, 2 and 3)
* Small in size, easy to handle
* Reads low and high coercivity cards (300 to 4000 Oe)
* LED for status
* Watch dog
Specification:
| Electrical |
| Power requirements | ‘+24VDC +/- 5% |
| Consumption | Typical 350mA Max. 600mA plus for each writing track |
| Power supply | External switching power 9V/2.5A |
| Communication Interface | USB |
| Ripple | 50mVp-p or less |
| Dielectric strength | 500 VDC for 1 minute |
| Performance |
| Track | Track1 | Track2 | Track3 |
| Recording density | 210 BPI | 75 BPI | 210 BPI |
| Record characters | 52 Characters | 25 Characters | 73 Characters |
| Coercive force | Read/write 300-4000 oe Mag.card |
| Card thickness | 0.76-1.2mm |
| Read speed STD card Jitter | ’ +/-15% Amp. 60% |
| Write speed | 5-30ips |
| Write jitter | Interval < +/- 10%, Sub-interval < +/- 12% |
| Error rate | Read < 0.5% |
| | Write < 0.8% |
| Head life | Min. 1000K swipes for both read/write head |
| Mechanical |
| Body material | ABS 94V-0 |
| Weight | Approx. 1.4kg |
| Dimension | 212L x 64W x 63H mm |
| Swipe Manual | single direction |
| Environments |
| Operation humidity | ‘-10 to 55oC, 10 to 85% |
| Storage humidity | ’-30 to 70oC, 10 to 90% |
| Safety Approval | Rating FCC , CE , UL, cUL |
Dimensions:
Size: L 90 x W 27.5 x H 28 mm
Weight: < 250g
Color: Black
Operating:
Ø Standards: ISO/ANSI/AAMVA/CA DMV
Ø Recording Method: Two-frequency coherent phase (F2F)
Ø Message Format: ASCII
Ø Card Speed: 10cm/sec. ~140cm./sec (5 ips ~55 ips)
Ø MTBF: Electronics - 100,000 hours; Head Life - 500,000 passes

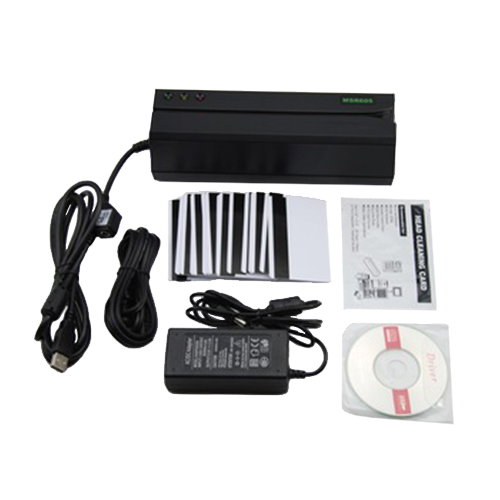

Package including:
Card reader&writer
Software
Power adaptor
USB cable
English Manual
Test Magnetic Card
Caution:
1) Dirty, scratched, and deformed cards cannot be used.
2) The card should not be placed in a magnetic object or damp
place.
