LCD 15.6" Capacitive Touch Screen Desktop Monitor High Resolution
15.6" Capacitive High Resolution LCD Panel Touch Screen Gaming
Monitor
Introduction
| • Strengthened cover glass |
| • Anti-glare treatment (chemical etching) |
| • Patented IP65 Front with silicon seal |
| • 10-finger-multi touch capacitive touch | |
| • LED backlight backed Panels in A+ quality |
| • Screwable connection for rugged environments |
specification
| Product name | 15.6’’ PCAP Touch Monitor |
| Modle numer | RCS-TM156 |
| Anti-glare LCD Panel |
| IP rated front panel | IP65 |
| Screen diagonal (Inch/cm): | 15.6/39.6 |
| Display active screen size: | 34.42x19.35 |
| Aspect ratio: | 16:9 |
| Physical resolution: | 1920×1080 |
|
| Colours displayed: | 16.7M |
| Brightness (cd/m2): | 250 |
| Contrast: | 800:1 |
| Typical reaction time Tr/ Tf : | 15/15 (ms) |
| Visual Angle horizontal/vertical : | 170/170(°) |
| Backlight / Backlight Lifetime (hours): | LED / 30,000 |
| Touch Panel |
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Connector | USB |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| |
| Operation / Mechanical |
| Operating Temperature | -10 ~ +65(°C) |
| Humidity Range (RH) | 10%-90% |
| Net weight (kg) | 4 |
| Gross weight (kg) | 6 (incl. cartonage) |
| Housing material | Aluminium |
| Housing (cm) LxWxH | 38.76x23.96x4.47 |
| Mounting | VESA 100/ VESA 75 |
| External Connectors |
| Video | 1x VGA |
| |
| 1x HDMI 1.1 (incl. HDCP) |
| Audio | 1x PC-Audio |
| 1x Earphone-Out |
| Touch Connector | 1x USB |
| Connectors | 1x 12V DC-IN |
Package

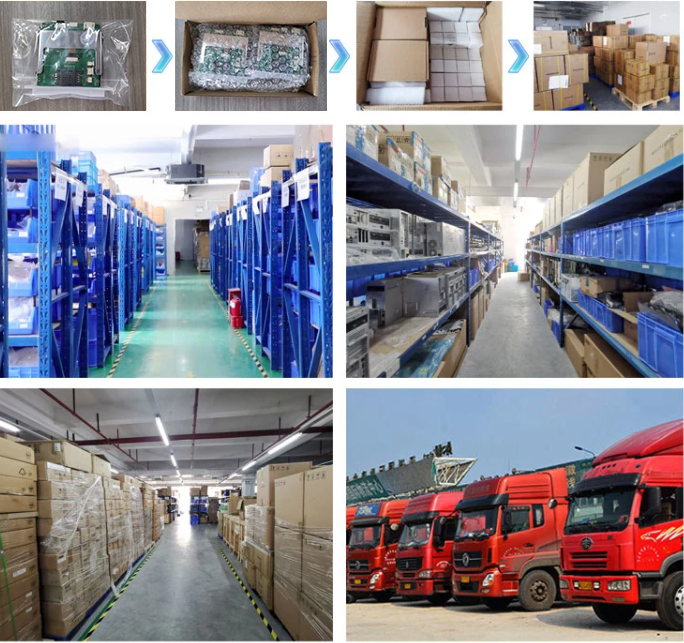

Shipment
Certificates
Business partner
About us
Established in 2017, Shenzhen rCloud Technology Co.,Ltd ( rCloud )
is professional hardware & software solution provider for global
gaming machine , which are focus on R&D manufacturing and
marketing Illuminated card reader, RFID card reader, Hybrid card
reader and Player Tracking System for Global Gaming System . To
insist "Know what you need , Do what we can", we committed to
becoming comprehensive solution provider for gaming industry
.During these years ,We have worked with Novomatic ,EGT ,Advansys ,
princess and playtech etc.
In Further development , we invest more to touch monitor factory
which specialized in designing and manufacturing capacitive touch
panel, Touch curved gaming monitor , LCD display etc.The total
facilities are more than 5,000 square meters, in which over 2,000
square meters are 100 Class dust-free workshop. In order to provide
our customers with high quality and satisfactory products, we
improve the latest technology and equipment constantly. We trust
that our accumulated experience, well-skilled manpower, advanced
technologies and reliable quality control are the most
distinguished factor to satisfy the customer's requirements.In the
near future , We are the first choice of many of World's largest
gaming manufacturers around the world .
FAQ
1.Q: When will you make the delivery?
A: The delivery will be within 3-20 working days according to the
size and quantities of your order.
2.Q: How does your factory do regarding quality control?
A:Quality is priority.Gamet people always attach great importance
to quality controlling from the beginning to end.
3.Q: Do you accept personal customization ?
A:Yes we are professional manufacturer of hardware&software
solution provider for gaming machine,Which are focus on R&D
manufacturing and marketing Illuminated card reader,RFID card
reader,Hybrid card reader and Player Tracking System for Global
Gaming System.we have profession- al designer for your needs.
4.Q:If you are not online,how can i get contact with you?
A. We have all kinds of social sofeware to get in touch with each
other, like whatsapp, skype, we chat, email and so on.We will reply
customers ASAP.
5.Q: What is your after-sale service?
A: We offer 100% guarantee on our product .And provide one-year
warranty service
