10.4" Industrial Waterproof PCAP Touch Screen Monitor Capacitive
Touch
10.4" Capacitive Industrial Waterproof PCAP High Resolution Touch
Monitor
Product name | 10.4’’ PCAP Touch Monitor |
Modle numer | RCS-TM104 |
Anti-glare LCD Panel |
IP rated front panel | IP65 |
Screen diagonal (Inch/cm): | 10.4/26.42 |
Display active screen size: | 21.1x15.8 |
Aspect ratio: | 4:3 |
Physical resolution: | 800x600 |
|
Colours displayed: | 16.7M |
Brightness (cd/m2): | 300 |
Contrast: | 800:1 |
Typical reaction time Tr/ Tf : | 10/15 (ms) |
Visual Angle horizontal/vertical : | 160/140 |
Backlight / Backlight Lifetime (hours): | LED / 30,000 |
Touch Panel |
Touch Technology | Projected Capacitive 10-point Multitouch |
Touch Connector | USB |
Touch Panel Drivers | Windows; Linux; Mac; Android |
Touch Life (Contacts) | Unlimited |
Surface Hardness | 7H |
Operation / Mechanical |
Operating Temperature | -10 ~ +65 (°C) |
Humidity Range (RH) | 10%-90% |
Net weight (kg) | 1.1 |
Gross weight (kg) | 2 (incl. cartonage) |
Housing material | Aluminium |

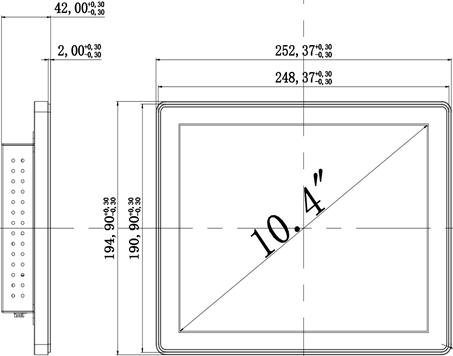

Housing (cm) LxWxH | 25.23x19.49x4.2 |
Mounting | VESA 100/ VESA 75 |
External Connectors |
Video | 1x VGA |
1x DVI-D |
1x HDMI 1.1 (incl. HDCP) |
Audio | 1x PC-Audio |
Touch Connector | 1x USB |
Connectors | 1x 12V DC-IN |
Power |
Power Indicator | Green LED |
Power Supply | 100-240V ACDC active switch- ing; 12V DC-Out |
Working Power (V) | 12 |
Power Consumption (W) | 10 |
Stand-By Consumption (W) | <1 |


About us
Established in 2017, Shenzhen rCloud Technology Co.,Ltd ( rCloud )
is professional hardware & software solution provider for global
gaming machine , which are focus on R&D manufacturing and
marketing Illuminated card reader, RFID card reader, Hybrid card
reader and Player Tracking System for Global Gaming System . To
insist "Know what you need , Do what we can", we committed to
becoming comprehensive solution provider for gaming industry
.During these years ,We have worked with Novomatic ,EGT ,Advansys ,
princess and playtech etc.
In Further development , we invest more to touch monitor factory
which specialized in designing and manufacturing capacitive touch
panel, Touch curved gaming monitor , LCD display etc.The total
facilities are more than 5,000 square meters, in which over 2,000
square meters are 100 Class dust-free workshop. In order to provide
our customers with high quality and satisfactory products, we
improve the latest technology and equipment constantly. We trust
that our accumulated experience, well-skilled manpower, advanced
technologies and reliable quality control are the most
distinguished factor to satisfy the customer's requirements.In the
near future , We are the first choice of many of World's largest
gaming manufacturers around the world .
FAQ
1.Q: What are your lead time ?
A:The order will be delivered within 7-10 days.
2.Q: How can I get samples ?
A:We can make out samples according to your requirement within 1-3
days,But ex- press and sample fee should be paid by customers.
3.Q: Do you accept personal customization ?
A:Yes we are professional manufacturer of hardware&software
solution provider for gaming machine,Which are focus on R&D
manufacturing and marketing Illuminated card reader,RFID card
reader,Hybrid card reader and Player Tracking System for Global
Gaming System.we have profession- al designer for your needs.
