58-82mm Thermal Receipt Printer Portable Mini Wireless Thermal
Printer USB
Cashino Self Service 58-82mm Kiosk ThermaL Ticket Printer For Cash
Dispensers
Overview
RCT-4612 is 3 inch kiosk thermal printer which is consist of
thermal printer head ,cutter and control board.
It is used for financial self-service terminals, communication
self-service terminals, coupons self-service terminals, ticketing
self-service terminals, power self-service terminals, medical
self-service terminals, insurance self-service terminals,tax
kiosks, self-service terminals such as kiosk terminal equipment,
tanker, Queuing machines and so on.
Production feature
1.large motor design and unique buffer
Stepper motor design, cutting paper thickness up to 0.2mm, support
150mm paper roll diameter, reduce supplies replacement times, and
buffer device can effectively prevent printing compression.
2.Narrow-flat design of paper-taking channel
Paper channel narrow flat design can print 0.2mm thickness of
consumables.
3.Fast Print speed
Depending on the different driving energy and thermal sensitivity
of the use of the heat-sensitive paper can be set according to user
requirements of different printing speed, up to 250mm/seconds of
printing speed
4.Easy to load paper structure
Unique rubber roller and print head slide away from the design
scheme, it is easy to clean the print head and fault removal
5.Penetrating photoelectric detection
Penetrating photoelectric detection can be used for label seam mark
Detection
6.Quick Elimination Card Cutter
A variety modes of Quick Elimination Card knife
7.unique paper near end detection
Easy to adjust the amount of paper
8.Strong overall structure
With thick sheet metal design, the structure is firm and difficult
to deform
9.Good heat dissipation of the motor
Fixed motor is metal, can quickly heat dissipation
Technical parameters
| Printing | Print method | Thermal-line dot method |
| Print speed | Max:250mm/s |
| Resolution | 203dpi(8dots/mm) |
| Effective printing area | 80mm |
| Character | Character set | ASCII,GBK,BIG5 and so on |
| Print font | ASCII:(9*17,9*24,16*18,12*24) Chinese:(24*24) |
| The characters number per line | Font A(12*24):32 Font B(9*17):42 GBK:16 |
| Paper Roll specification | Paper type | Thermal paper roll |
| Paper width | 58-82mm |
| Paper thickness | 55-200μm |
| Max paper roll diameter/paper roll inner diameter | Max:150mm/Min:18mm |
| Paper Feed method | Automatic feeding (straight out) |
| detection | Head temperature detection | Thermistor |
| No Paper detection | Photoelectric detection |
| Paper near end detection | Photoelectric detection |
| Black mark detection | Photoelectric detection |
| Seam Mark Detection | Photoelectric detection |
| platen open detection function | Mechanical switch |
| Baud rate | 9600bps-115200bps |
| Instruction Set | EPSON ESC/POS Instruction Set |
| Driver | Windows Driver |
| Interface | USB,RS232,LAN |
| Barcode | 1D code | UPCA,UPC-E,JAN13(EAN13),JAN8(EAN8),CODE39,ITF,CODABAR,CODE128,CODE93； |
| 2D code | QR code |
| Reliability | Print Life | 100Km |
| Cutter life | >1000000cuts (When cutting paper with thickness greater than 0.1mm, 500000cuts) |
| Cutter | Auto cutter | Support full cutter and half cutter simultaneously |
| Power | input | DC24V±10%,≥2A |
Environmental conditions | Operating temperature | 0°C~50°C |
| Operating humidity | 20%RH ~85% RH |
| Storage temperature | -20°C~60°C |
| Storage humidity | 5% ~90%RH |
| Overall dimension (wide * deep * high) | With presenter(paper roll diameter 150mm) | 114.8*157*234.3mm(without paper bezel) |
| Without presenter(paper roll diameter 150mm) | 114.8*157*233.8(without paper bezel) |
| Without presenter(paper roll diameter 80mm) | 114.8*83*170.3mm (without paper bezel) |
Horizontal Model

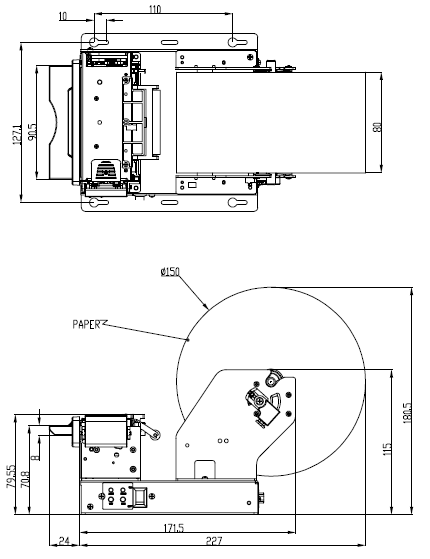

dimensional drawing without presenter(paper roll diameter 150mm)
paper feeding
Under the normal working conditions, please press the paper key
[FEED], and the printer starts to move the paper.
The printer cutter resume work and exclude paper jam
Owing to the paper jammed, if the cutter has been locked during
paper cutting
Method one:Switch off the printer and turn the printer on again,
and the cutter will return to its normal position.
Method Two:press the open-cover button and the cutter will return
to its normal position.
Exclude paper Jam: Firstly the printer cutter resume work , and
then exclude the paper jam, and finally clear the paper channel
residual scraps.
