15 Inch 10 Point LCD Capacitive TFT PCAP Touch Screen Monitor
Overview:
The projected 10-point capacitive touch panel is accurate and
responsive. The touch function is quickly established when
connected via USB port. wintouch includes touchscreen drivers for
popular Microsoft (CE, WinXP, Vista, Win 7, Win 8, Win 10), Mac,
Android and Linux operating systems. For Win 7, Win 8 and Win 10
operating systems no driver installation is needed. Login using
virtual keyboard and immediate use of windows gestures making
starting and using Windows incredibly easy. Embedded systems like
e.g. the raspberry Pi are also supported.
Advantage:
Cover glass that has been strengthened
Treatment to reduce glare (chemical etching)
Ccapacitive touch with ten fingers
LED backlit panels with A+ quality
Screwable connection for use in harsh environments
Specification:
Product name | 15’’ PCAP Touch Monitor |
Modle numer | RCS-TM150 |
Anti-glare LCD Panel |
IP rated front panel | IP65 |
Screen diagonal (Inch/cm): | 15/38.10 |
Display active screen size: | 30.40*22.80 |
Aspect ratio: | 4:3 |
Physical resolution: | 1024x768 |
Colours displayed: | 16.7M |
Brightness (cd/m2): | 300 |
Contrast: | 700:1 |
Typical reaction time Tr/ Tf : | 8/8(ms) |
Visual Angle horizontal/vertical : | 160/160(°) |
Backlight / Backlight Lifetime (hours): | LED / 40,000 |
Power |
Power Indicator | Green LED |
Power Supply | 100-240V ACDC active switch- ing; 12V DC-Out |
Working Power (V) | 12 |
Power Consumption (W) | 18 |
Stand-By Consumption (W) | <1 |
Common Problem:
Custom design:Our company accepts customized design. We must first
confirm the customized requirements with us. After confirming, we
will formulate relevant customized samples. After your
confirmation, we can proceed with normal production.
Payment Terms :Regarding the payment method, our company supports
T/T, Western Union,Paypal, L/C.
Shipping:Regarding the logistics method, we generally have a
designated logistics provider. If you have special requirements,
you can communicate with us.
Delivery time: If the product is in stock, it can be sent out on
the same day; if it is mass-produced, it will take about 2-4 weeks.
Samples: Our company can provide samples, but please pay for the
samples and freight.

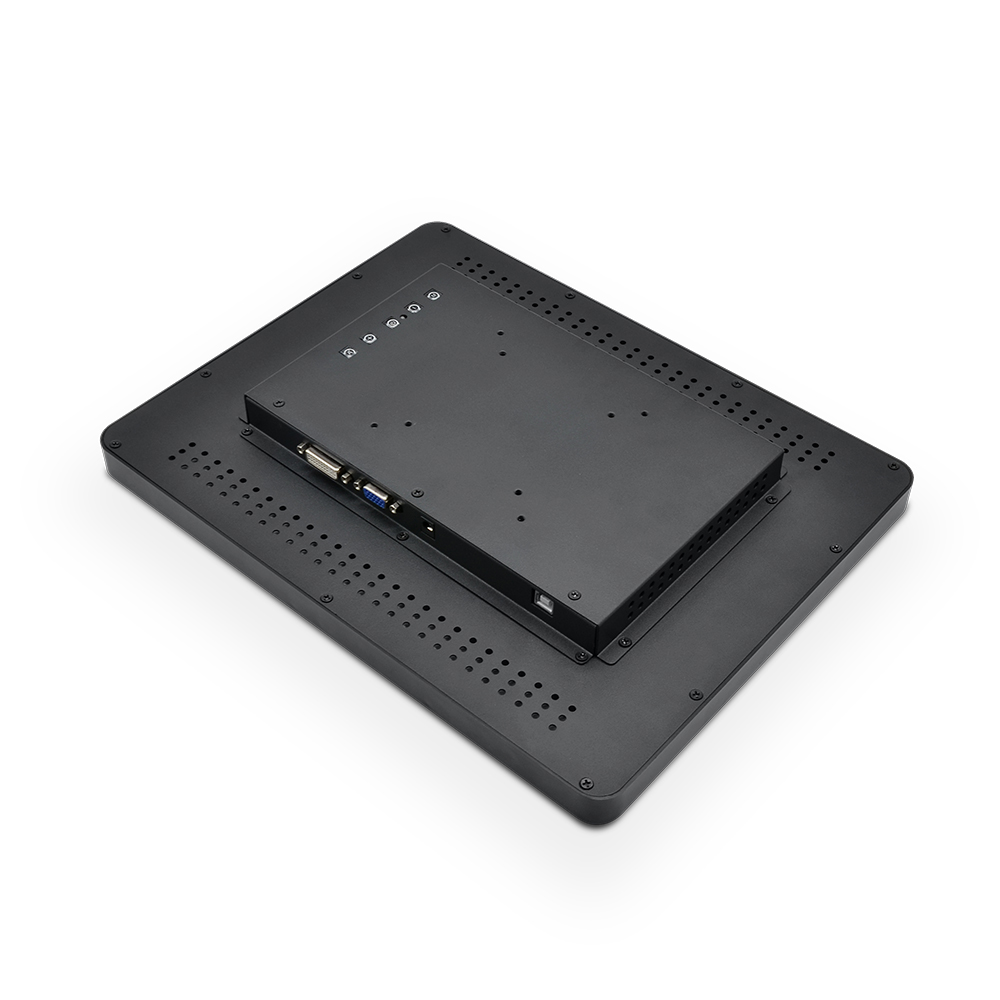

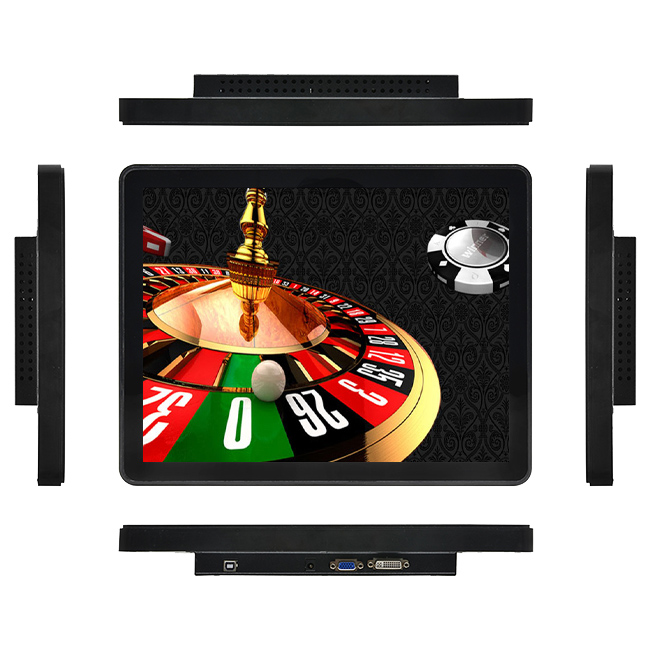

Product Images:
