High-Performance Contactless RFID Smart Card Reader Writer Module
Overview

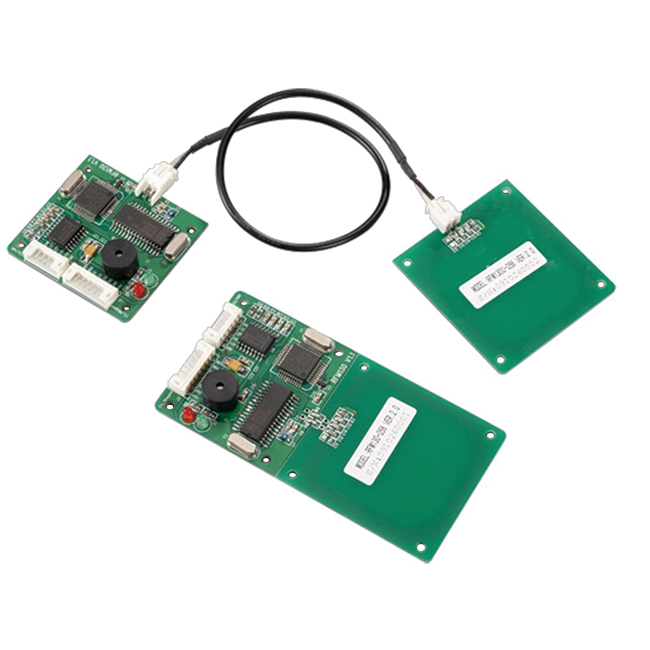

RCR-3300 ( former as RFM-13X series )is a high-performance embedded
RFID card reader/writer module, read and write Mifare1 (S50 and
S70), ISO 14443A/ B, ISO 15693 series card, with one SAM slot,
RS232/USB/TTL interface for optional. It can be widely applied in
the industries of attendance system, access control, public
transportation, and any other terminal systems.
Interface
Main interface J1(6*2.0mm)
Used for RS232 and USB communication, Pin definition description:
Pin1 ---- GND
Pin2 ---- VCC (DC+5V)
Pin3 ---- GND
Pin4 ---- RS232.RX or RS485.B or USB.D+
Pin5 ---- RS232.TX or RS485.A or USB.D-
Pin6 ---- GND
Extended interface J2(8*2.0mm)
Used for TTL. Pin definition description:
Pin1 ---- VCC (DC+5V)
Pin2 ---- GND
Pin3 ---- TTL.RXD
Pin4 ---- TTL.TXD
Pin5 ---- GPIO0
Pin6 ---- GPIO1
Pin7 ---- Wiegand.D0
Pin8 ---- Wiegand.D1
Specification
| Voltage | +5VDC (± 5%) |
| Current | <120mA |
| Card type | Read and Write Mifare1 (S50, S70) ,ISO14443A/B,ISO15693,Smart card |
| Distance | Type A: 0~8cm,type B: 0~5cm,ISO15693: 0~10cm |
| Interface | RS232/RS485, TTL, USB HID |
| Baud rate | 9600(default)~115200 BPS |
| Temperature | Operating: 0°C ~ + 60°C Storage: -20°C ~ + 60°C |
| Humidity | Operating: 5% ~ 95% RH Storage: 20 %~ 90% RH |
| Dimension | 100mm ( L ) x 50mm ( W ) x 10mm ( H ) |
Data packet format
There is three kinds of data packet: packet head, data block,
command. When a USB command length is over 64byte, it will adopt
separating packet transmission, the separated command is resealed
by new data packet, it is called data block. It should send packet
head at first before sending data block, packet head contains the
detailed information of sending data block.
